C70600 CuNi10Fe1Mn CN102 EN12451 Tabung Kapiler Tembaga
Rincian produk

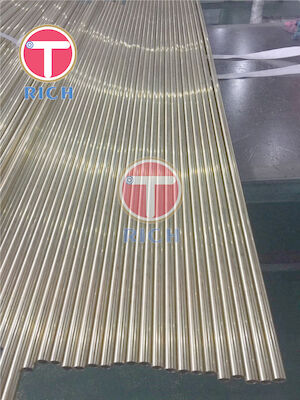

EN12451 Copper Capillary Tube
,C70600 Copper Capillary Tube
,ASTM B111 Copper Capillary Tube
Tabung tabung tembaga nikel tanpa jahitan Tabung tabung paduan C70600/CuNi10Fe1Mn /CN102 EN12451 Tabung kapiler CuNi10Fe1Mn
Detil cepat:
Nama produk:Tabung tabung tembaga nikel tanpa jahitan Tabung tabung paduan C70600/CuNi10Fe1Mn /CN102 EN12451 Tabung kapiler CuNi10Fe1Mn
Tipe:Pipa tembaga lurus,pipa tembaga pancake coil,pipa tembaga kapiler
Kelas:C70600/CuNi10Fe1Mn /CN102 EN12451 CuNi10Fe1Mn
Standar:ASTM B111 EN 12454 DIN 17660/1785 BS2871 JIS H3300 GB/T18890
Bentuk:Bulat, persegi, persegi panjang, oval, setengah bulat
Putaran:OD:2-914mm (1/16"-36") WT:0.2-120mm ((SCH5S-SCH160S)
Ukuran persegi:2*2-1016*1016mm ((1/16"-40") WT:0.2-120mm
Bentuk persegi panjangUkuran:2*4-1016*1219mm ((1/16"-48") WT:0.2-120mm
Panjang1m, 2m, 3m, 6m, atau sesuai kebutuhan
Kekerasan1/16 keras, 1/8 keras, 3/8 keras, 1/4 keras, 1/2 keras, penuh keras, lunak, dll
Permukaan:penggilingan,dipoli,berkilau,dilempar minyak,garis rambut,kuas,cermin,pemborosan pasir,atau sesuai kebutuhan
Aplikasi:
Tembaga memiliki konduktivitas panas yang baik.
pendingin, pipa pemanasan listrik, AC dan kulkas, transportasi minyak, rem
pipa, pipa air dan pipa gas untuk konstruksi, dll.
Deskripsi:
Tabung kapiler CuNi10Fe1Mn C70600/CuNi10Fe1Mn /CN102 EN12451 telah disetujui oleh TUV PED,CCS,dan Lloyd's ISO 9001.
Waktu pengiriman cepat
Sampel tersedia
Harga yang kompetitif
Tanggapan Cepat
Baik setelah layanan
| Tembaga atau paduan tembaga UNS No. | Cu | Pb | Fe | Tidak | Zn | S | P | Mn | C | Sn |
| C70600 | Saldo | 0.05max | Satu satu.8 | 9-11 | 1.0 | 1.0max | ||||
| CW352H | Saldo | 0.02max | 1.0-2.0 | 9-11 | 0.5max | 0.05max | 0.02max | 0.5-1.0 | 0.05max | 0.03max |
| CuNi10Fe1Mn | Saldo | 0.02max | 1.0-1.8 | 9-11 | 0.5max | 0.05max | 5-1.0 | 0.05max | ||
| CN102 | Saldo | 0.01max | 1.0-2.0 | 10-11 | 0.05max | 0.5-1.0 | 0.05max | |||
| C7060 | Saldo | 0.05max | 1.0-1.8 | 9-11 | 0.5max | 0.05max | 0.2-1.0 | |||
| BFe10-1-1 | Saldo | 0.02 maksimal | 1.0-1.5 | 9-11 | 0.3max | 0.06max | 0.06max | 0.5-1.0 | 0.05max | 0.03max |
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
Keterangan lain: Keterangan lain:
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,
C71500, C71520, C71640, C72200, dll.
Standar terkait:
ASTM B111
Spesifikasi standar untuk tabung kondensor tanpa jahitan tembaga dan tembaga - paduan dan stok ferrule
GB/T8890
Tabung paduan tembaga tanpa jahitan untuk kondensor dan penukar panas
BS2871
Spesifikasi standar untuk tabung tembaga dan paduan tembaga
JIS H3300
Spesifikasi standar untuk pipa dan tabung tanpa jahitan tembaga dan paduan tembaga
DIN1785
Tabung tembaga dan paduan tembaga untuk kondensator dan penukar panas
GB/T19447
Tabung tanpa jahitan dari tembaga dan paduan tembaga dengan sirip integral untuk penukar panas
ASTM B359
Spesifikasi standar untuk tabung kondensor dan penukar panas tanpa jahitan tembaga dan paduan tembaga dengan sirip integral
ASME SB 359
Spesifikasi standar untuk tabung kondensor dan penukar panas tanpa jahitan tembaga dan paduan tembaga dengan sirip integral
Peraturan EN 12451
Spesifikasi standar untuk tembaga dan paduan tembaga - tabung bulat tanpa jahitan untuk penukar panas
-
