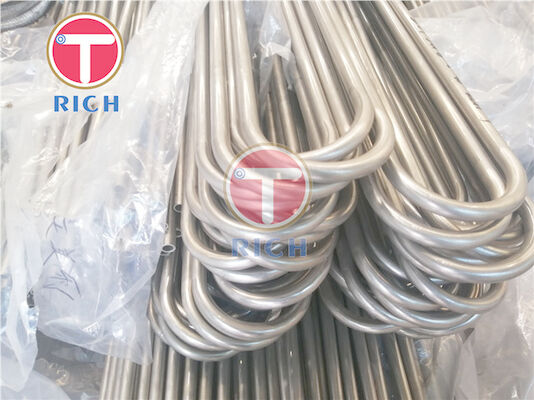

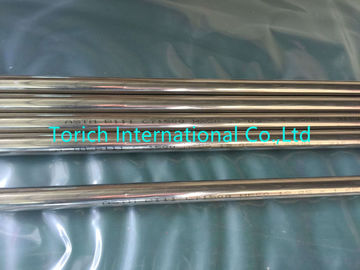

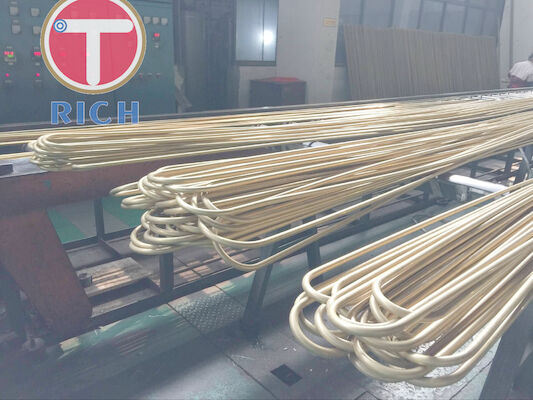

ASTM B188 C70600 CuNi10Fe1Mn Pipa Baja Paduan
Rincian produk
Pipa Baja Paduan CuNi10Fe1Mn
,Pipa Baja Paduan C70600
,Pipa Baja Paduan ASTM B188
C70600 CuNi10Fe1Mn pipa tabung tembaga atau tembaga nikel paduan tanpa jahitan
Kata kunci: tabung kondensor; tembaga; paduan tembaga; penguap; stok ferrule; penukar panas; tabung tanpa jahitan;
C0050/R0050 atau C0050/R0050 atau C0050/R0050 atau C0050/R0050
C0050/R0050 atau C0050/R0050 atau C0050/R0050 atau C0050/R0050
C72200
| Artikel | Pipa Tembaga Nikel dalam C70600/CuNi10FeMn/CN102
|
| Jenis | Pipa tembaga lurus, Pancake Coil pipa tembaga, Kapiler pipa tembaga
|
| Standar | GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
|
|
Bahan | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
|
| Bentuk | Bulat, persegi, persegi panjang, oval, setengah bulat
|
| Bulat | OD:2-914mm (1/16"-36") WT:0.2-120mm ((SCH5S-SCH160S)
|
| Persegi | Ukuran:2*2-1016*1016mm ((1/16"-40") WT:0.2-120mm
|
| Bentuk persegi panjang | Ukuran:2*4-1016*1219mm ((1/16"-48") WT:0.2-120mm
|
| Panjang | 1m, 2m, 3m, 6m, atau sesuai kebutuhan
|
| Kekerasan | 1/16 keras, 1/8 keras, 3/8 keras, 1/4 keras, 1/2 keras, penuh keras, lunak, dll
|
| Permukaan | penggilingan,dipoli,berkilau,dilempar minyak,garis rambut,kuas,cermin,pemborosan pasir,atau sesuai kebutuhan
|
|
Aplikasi | Tembaga memiliki konduktivitas panas yang baik. radiator, pendingin, pipa pemanasan listrik, AC dan kulkas, transportasi minyak, rem pipa, pipa air dan pipa gas untuk konstruksi, dll. |
| Persyaratan kimia | |||||||||||||
| Tembaga atau paduan tembaga UNS No. | Tembaga | Kaleng | Al | Tidak termasuk Co | Pb max | Fe max | Zn max | Mn max | Sebagai | Sb | Pmax | Cr | Unsur bernama lainnya |
| C44300 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.06 | |||||||
| C44400 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.10 | |||||||
| C44500 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.10 | |||||||
| C60800 | sisanya | 5.0-6.5 | 0.1 | 0.1 | 0.02-0.35 | ||||||||
| C61300 | sisanya | 0.20- 0.50 | 6.0-7.5 | 0.15 maksimal | 0.01 | 2.0-3.0 | 0.1 | 0.2 | 0.015 | ||||
| C61400 | sisanya | 6.0-8.0 | 0.01 | 1.5-3.5 | 0.2 | 1.0 | 0.015 | ||||||
| C68700 | 76.0-79.0 | 1.8-2.5 | 0.07 | 0.06 | sisanya | 0.02-0.06 | |||||||
| C70400 | sisanya | 4.8-6.2 | 0.05 | 1.3-1.7 | 1.0 | 0.30-0.80 | |||||||
| C70600 | sisanya | 9.0-11.0 | 0.05 | 1.0-1.8 | 1.0 | 1.0 | |||||||
| C70620 | 86.5 menit | 9.0-11.0 | 0.02 | 1.0-1.8 | 0.5 | 1.0 | 0.02 | C.05max S.02max | |||||
| C71000 | sisanya | 19.0-23.0 | 0.05 | 0.50-1.0 | 1.0 | 1.0 | |||||||
| C71500 | sisanya | 29.0-33.0 | 0.05 | 0.4-1.0 | 1.0 | 1.0 | |||||||
| C71520 | 65.0 menit | 29.0-33.0 | 0.02 | 0.4-1.0 | 0.5 | 1.0 | 0.02 | C.05max S.02max | |||||
| C71640 | sisanya | 29.0-32.0 | 0.05 | 1.7-2.3 | 1.0 | 1.5-2.5 | C.06max S.03max | ||||||
| C72200 | sisanya | 15.0-18.0 | 0.05 | 0.50-1.0 | 1.0 | 1.0 | 0.30-0.70 | Si.03max Ti.03max | |||||
Dokumen referensi:
B153 Metode pengujian untuk ekspansi (Pin Test) dari pipa dan tabung tembaga dan paduan tembaga.
B154 Metode uji untuk uji nitrat merkurius untuk paduan tembaga.
B170 Spesifikasi untuk bentuk pengolahan tembaga elektrolitik bebas oksigen.
B224 Klasifikasi Tembaga.
B846 Terminologi untuk tembaga dan paduan tembaga.
B858 Metode pengujian uap amoniac untuk menentukan kerentanan terhadap retakan korosi tegangan pada paduan tembaga.
-
