Sa-556 Grade C2 U Bend Tube / Membungkuk Untuk Penukar Panas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
SA-556 Kelas C2 U Bend Tube/Bent Tube Heat Exchanger Asal usul Cina Nama merek Torich Sertifikat ISO9001 TS16949 Bahan Baja karbon Baja tahan karat Nama produk SA-556 Kelas C2 U Bend Tube/Bent Tube Heat Exchanger Kapasitas U membungkuk Pengantar dasar Metode produksi:Menggambar dan Melengkungkan ...
Rincian produk
Menyoroti:
tabung tekuk kelas c2 u
,tabung tekuk sa-556 u
Thickness:
0,6 - 50,0 mm
Standard:
ASTM
Alloy Or Not:
Apakah Paduan?
Section Shape:
Bulat
Secondary Or Not:
Non-sekunder
Material:
Baja karbon
Warranty:
12 bulan
Application:
penukar panas
Product Name:
SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
Deskripsi Produk
SA-556 Kelas C2 U Bend Tube/Bent Tube Heat Exchanger
| Asal usul | Cina |
| Nama merek | Torich |
| Sertifikat | ISO9001 TS16949 |
| Bahan | Baja karbon Baja tahan karat |
| Nama produk | SA-556 Kelas C2 U Bend Tube/Bent Tube Heat Exchanger |
| Kapasitas | U membungkuk |
Pengantar dasar
Metode produksi:Menggambar dan Melengkungkan
Bahan dariU Bend Tube:
Baja karbon:SA179,SA192,SA334 Gr3 Gr6,SA178 GrA,A210 Gr1 dll
Baja tahan karat:SA213 TP304, TP304L, TP316, TP316L, T5, T9, T11, T22, dll.
Ukuran:
OD:6.0-60.3mm
WT:0.6-6.0mm
BentukU Bend Tube:Bulat dan berbentuk U.
Aplikasi:Penukar panas.
Persyaratan kualitas:MTC EN 10204.3.1 atau 3.2
Radius lentur1.25 x OD hingga 1700mm
Deskripsi Produksi
Apa yang bisa kita lakukan:
Pengujian tambahan:
Pengujian PMI
Pengolahan panas
Pengukuran, Pemotongan, Pengeboran dan Pembersihan
Pengolahan panas tikungan
U-bend dengan radius lentur hingga maksimum 1500mm dapat dirawat panas atas permintaan
| Kelas ((UNS): | Baja tahan karat austenit: 304/304L/304H(1.4301/1.4306/1.4948);316/316L(1.4401/1.4404);316Ti(1.4571);321(1.4541);309S(1.4833);310S(1.4845);317L(1.4438)321H(1.4878);347H(1.4550); Baja tahan karat dupleks: S32001, S32003, S31500,2205(1.4462);S32304, ((1.4362);S31803,2507(S32750),S32760(1.4501);S32101(1.4162); Baja tahan karat super austenit:904L, S30432, S31042, 6Mo (S31254, N08367) Paduan Nikel Base: Paduan 20(UNS N08020),Monel 200(UNS 02200),Monel 400(UNS N04400),Incoloy 800(UNS N08800),Incoloy 800H(UNS N08810), Incoloy 800HT (UNS N08811),Incoloy 825(UNS N08825),Inconel 600(UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276) Baja tahan karat Martensitic:410 ((1.4006), 410S ((1.4000), 420 ((1.4021) Baja tahan karat ferritik:405 ((1.4002), 430 ((1.4016) |
| Diameter luar: | 6 - 830mm |
| Ketebalan dinding: | 0.50 - 60mm |
| Standar(Norma): | EN 10216-5;DIN 17456, DIN 17458, DIN 2462, DIN 17455 |
| GB/T14975; T14976; T13296; GB5310; | |
| ASTM A213,A269,A312,A511,A789,A790,A928, A999, A1016, ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM B338, ASTM B407, ASTM B423,ASTM B444,ASTM B619, ASTM B622, ASTM B626, ASTM B668, ASTM B677, ASTM B829 | |
| JIS G3459, JIS G3463, JIS G3446, JIS G3447, JIS G3448, JIS G3468 | |
| GOST 9940;GOST 9941; |
Aplikasi:
Penukar
Fitur:
1. Waktu pengiriman cepat
2.High sebelumnya
3Sifat Mekanis yang Baik
4.100% HT, tes EKT
5.Inspeksi pihak ketiga tersedia.

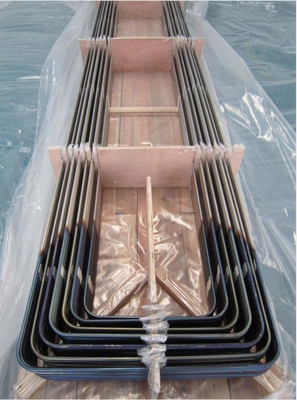

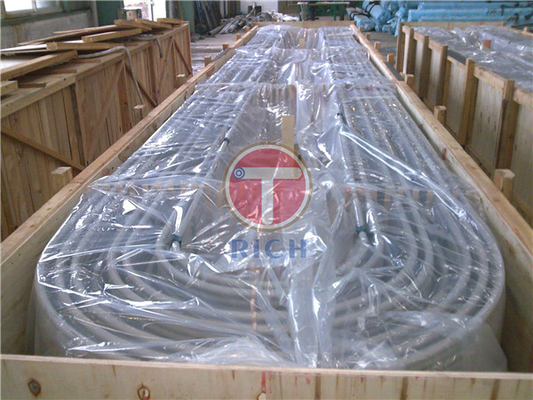

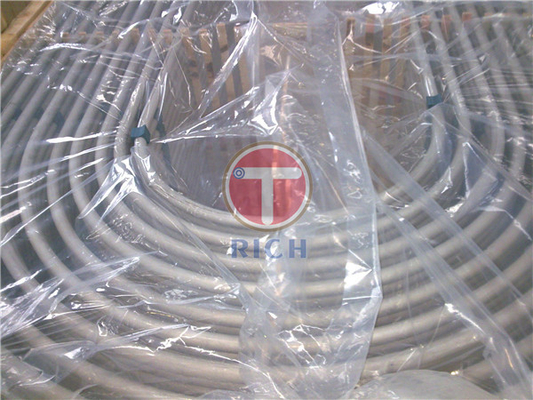

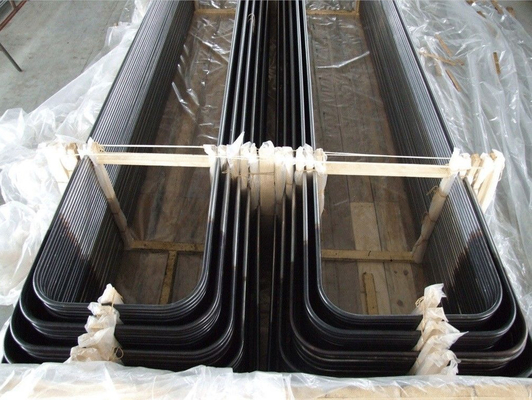

Pameran produk:
Kemasan:Tas tenun,kasus kayu atau sesuai dengan kebutuhan klien
Pengiriman:Pengangkutan darat/pengangkutan laut
Peralatan:
