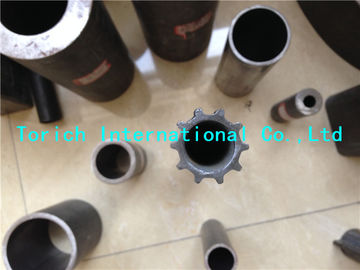

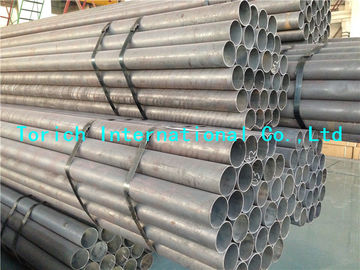

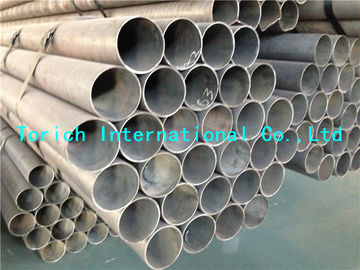

Seamless Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 Untuk Roda Gigi / Poros
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
TS16949
Nomor Model:
Alloy Steel Pipe
Properti Perdagangan
Jumlah Pesanan Minimum:
5MT
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
6000MT/Month
Ringkasan Produk
Tabung baja paduan 41Cr4 40Cr DIN1.7035 Tabung baja tanpa jahitan dengan kelas baja paduan41Cr440CrDIN1.7035 Persamaan internasional: JIS: SCr440ASTM: 5140ISO: 41Cr4 41Cr4DIN1.7035:C:0.42Si:0.25Mn:0.70Cr: 1.05 40Cr:C:0.37-0.44Si:0.17-0.37Mn:0.50-0.80Cr:0.80-1.10 Tabung baja tanpa jahitan dengan ...
Rincian produk
Menyoroti:
tabung baja paduan
,baja paduan tabung mulus
Product Name::
tabung baja paduan
Application::
Roda gigi, gandar, poros
Production Method:
Cold Drawn Seamless atau Cold Rolled
Grade:
41Cr4 40Cr DIN1.7035
Deskripsi Produk
Tabung baja paduan 41Cr4 40Cr DIN1.7035
Tabung baja tanpa jahitan dengan kelas baja paduan41Cr440CrDIN1.7035
Persamaan internasional:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4
41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05
40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10
Tabung baja tanpa jahitan dengan kelas baja ini dapat mencapai sifat mekanik yang baik denganpengolahan panas penekan dan tempering (QT),bisa juga perawatan panas dengandipanaskan.
Aplikasi:
Roda gigi, poros, poros, dll.
Persamaan internasional:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4
41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05
40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10
Tabung baja tanpa jahitan dengan kelas baja ini dapat mencapai sifat mekanik yang baik denganpengolahan panas penekan dan tempering (QT),bisa juga perawatan panas dengandipanaskan.
Aplikasi:
Roda gigi, poros, poros, dll.
Sifat mekanik:
Kekuatan tarik≥980 Mpa
Kekuatan hasil≥785 Mpa
Perpanjangan≥ 9
Kekerasan≤ 229HBS
Kekuatan tarik≥980 Mpa
Kekuatan hasil≥785 Mpa
Perpanjangan≥ 9
Kekerasan≤ 229HBS
Untuk aplikasi poros dan bagian mesin:
