Sertifikasi Wear Lingkungan Alloy Steel Pipe Alloy 6B Cobalt - Berbasis PED
Rincian produk
tabung baja paduan
,baja paduan tabung mulus
Pakai Lingkungan Alloy Steel Pipe Alloy 6B Cobalt - Berdasarkan Sertifikasi PED
Alloy Steel Pipe Alloy 6B paduan berbasis kobalt
Alloy 6B adalah paduan berbasis kobalt untuk lingkungan keausan, anti kejang, anti keausan, anti gesekan.yang dapat membuat kontak geser dan logam lain dan tidak memakai dalam kebanyakan kasus. Bahkan tanpa pelumas, atau tidak dapat menggunakan aplikasi pelumas, Alloy 6B meminimalkan gesekan dan keausan.tidak harus bergantung pada kerja dingin atau perawatan panas, yang akan mengurangi beban kerja dan biaya pengolahan perawatan panas berikutnya. paduan 6B tahan kavitasi, ketahanan benturan, kejut termal dan berbagai media korosif,dan dalam keadaan panasJadi, dalam lingkungan yang sangat mudah dipakai dan korosi, paduan 6B sangat praktis.Hal ini juga dapat digunakan dalam pembuatan bagian katup, piston pompa, ketahanan korosi mesin uap, bantalan suhu tinggi, batang katup, peralatan pengolahan makanan, katup jarum, mati ekstrusi panas, penggilingan cetakan, dll.
Komposisi kimia dari paduan 6B:
| Komposisi Kimia | |||||||
| Tidak | Cr | Fe | C | Mn | Mo | W | Co. |
| ≤ 3% | 28%-32% | ≤ 3% | 00,9% - 1,4% | ≤ 2% | ≤1,5% | 30,5%-5,5% | Margin |
Properti mekanik untuk paduan 6B:
| Sifat Mekanis | |
| Kekuatan tarik | 999.74 MPa |
| Kekuatan Hasil | 620.53 MPa |
| Perpanjangan setelah patah tulang | 12% |
| Kekerasan | Rockwell C36 |
Sifat fisik paduan 6B:
| Sifat Fisik | |
| ρ | 8.387g/cm3 |
| C ((@ 72°F) | 422.87 J/ ((kg·K) |
| koefisien konduktivitas termal ((32-212°F) | 178.22 W/m·K) |
| Resistor ((68°F) | 546 Ω |
| Jangkauan Suhu Peleburan | 2310-2470 °F ((39778.2-42533.4°C) |
| Konduktivitas listrik (bandingkan dengan Tembaga) | 1.90% |
Film Produksi:

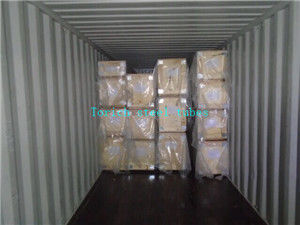

Gambar kemasan:
-
