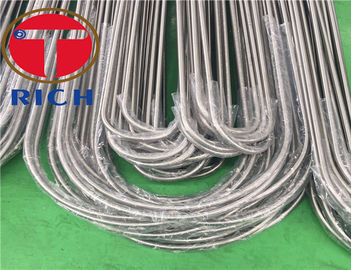

Alloy Steel Pipa Stainless Steel U Bend Untuk Boiler, ASTM A213 Standard
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
1000-6000 USD PER TON
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Serikat Barat, Serikat Barat, MoneyGram, MoneyGram
Kemampuan Penyediaan:
5000 Ton Per Bulan
Ringkasan Produk
Il penukar panas OD:6-127mm WT:0.5-12mm Kelas:T5, T9, T11, T12, T21, T22 [T" (tabung kaliber kecil) 304 316 317 dll Kata kunci:U tabung baja lentur Baja paduan Baja tahan karat SA213 pipa baja panjang, membuat ke U membungkuk tabung untuk boiler dan penukar panas. Dengan struktur kayu yang kuat ...
Rincian produk
Menyoroti:
bend steel tubing
,menekuk tabung baja
Product Name:
U Bend Tube Baja paduan Stainless steel untuk Boiler dari TORICH
Keyword:
u bend tabung
Applicatiaon:
untuk boiler
Standard:
ASTM A213
Materail:
TP304 TP304L TP316 TP316L DLL
Type:
Dingin Diambil Mulus
OD:
6-127mm
WT:
0,5-12mm
Length:
Disesuaikan
Brand:
UNTUK KAYA
Deskripsi Produk
Il penukar panas
OD:6-127mm
WT:0.5-12mm
Kelas:T5, T9, T11, T12, T21, T22 [T" (tabung kaliber kecil) 304 316 317 dll
Kata kunci:U tabung baja lentur Baja paduan Baja tahan karat
SA213 pipa baja panjang, membuat ke U membungkuk tabung untuk boiler dan penukar panas.

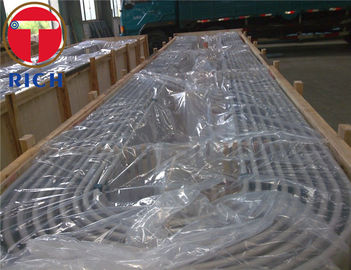

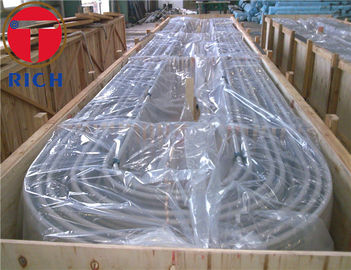

Dengan struktur kayu yang kuat kotak pengemasan oleh kontainer loading dan pengiriman.
Tabung pemanas U Tabung dengan stainless steel, baja paduan tersedia, baja karbono tersedia.
Sifat Mekanis:
| Bahan | Sifat Mekanis | ||
| Kekuatan tarik ≥ MPa | Kekuatan hasil ≥ MPa | Perpanjangan ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
Terima kasih:
Gauge-Inch-mm Gauge 12 14 15 16
