ASTM B111 U Bending Tabung Paduan Tembaga Dingin Diambil C68700 C71500 C68700
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001
Nomor Model:
ASTM B111
Properti Perdagangan
Jumlah Pesanan Minimum:
500KGS
Harga:
USD 30-70USD/pcs
Ketentuan Pembayaran:
T/T, L/C
Kemampuan Penyediaan:
5000tons per tahun
Ringkasan Produk
ASTM B111 C68700 C71500 C68700 U tabung baja lentur Tabung tembaga untuk penukar panas Tembaga dan tembaga paduan kondensator tanpa jahitan tabung dan ferrule stok Kualitas yang baik untuk penukar panas Ukuran umum sebagaiOD 19.0525 tahun.12.7, WT 1.651.2452.11. Persyaratan kimia Tembaga atau paduan ...
Rincian produk
Menyoroti:
bend steel tubing
,bending steel pipe
Material:
C68700,C71500,C68700
Shape:
tipe U
Procuce Method:
Ditarik dingin + membungkuk
Standard:
Standar ASTM
MTC:
En10204.3.2B
Length:
1-25m
Deskripsi Produk

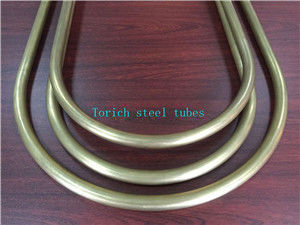

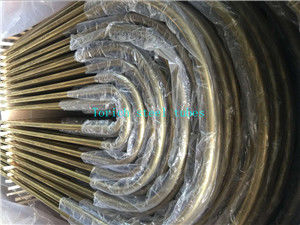

ASTM B111 C68700 C71500 C68700 U tabung baja lentur Tabung tembaga untuk penukar panas
Tembaga dan tembaga paduan kondensator tanpa jahitan tabung dan ferrule stok
Kualitas yang baik untuk penukar panas
Ukuran umum sebagaiOD 19.0525 tahun.12.7, WT 1.651.2452.11.
| Persyaratan kimia | |||||||||||||
| Tembaga atau paduan tembaga UNS No. | Tembaga | Kaleng | Al | Tidak termasuk Co | Pb max | Fe max | Zn maksimal | Mn max | Sebagai | Sb | P maksimal | Cr | Unsur bernama lainnya |
| C44300 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.06 | |||||||
| C44400 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.10 | |||||||
| C44500 | 70.0-73.0 | 0.9-1.2 | 0.07 | 0.06 | sisanya | 0.02-0.10 | |||||||
| C60800 | sisanya | 5.0-6.5 | 0.1 | 0.1 | 0.02-0.35 | ||||||||
| C61300 | sisanya | 0.20-0.50 | 6.0-7.5 | 0.15 maksimal | 0.01 | 2.0-3.0 | 0.1 | 0.2 | 0.015 | ||||
| C61400 | sisanya | 6.0-8.0 | 0.01 | 1.5-3.5 | 0.2 | 1.0 | 0.015 | ||||||
| C68700 | 76.0-79.0 | 1.8-2.5 | 0.07 | 0.06 | sisanya | 0.02-0.06 | |||||||
| C70400 | sisanya | 4.8-6.2 | 0.05 | 1.3-1.7 | 1.0 | 0.30-0.80 | |||||||
| C70600 | sisanya | 9.0-11.0 | 0.05 | 1.0-1.8 | 1.0 | 1.0 | |||||||
| C70620 | 86.5 menit | 9.0-11.0 | 0.02 | 1.0-1.8 | 0.5 | 1.0 | 0.02 | C.05 maksimal S.02 maksimal | |||||
| C71000 | sisanya | 19.0-23.0 | 0.05 | 0.50-1.0 | 1.0 | 1.0 | |||||||
| C71500 | sisanya | 29.0-33.0 | 0.05 | 0.4-1.0 | 1.0 | 1.0 | |||||||
| C71520 | 65.0 menit | 29.0-33.0 | 0.02 | 0.4-1.0 | 0.5 | 1.0 | 0.02 | C.05 maksimal S.02 maksimal | |||||
| C71640 | sisanya | 29.0-32.0 | 0.05 | 1.7-2.3 | 1.0 | 1.5-2.5 | C.06 maksimal S.03 maksimal | ||||||
| C72200 | sisanya | 15.0-18.0 | 0.05 | 0.50-1.0 | 1.0 | 1.0 | 0.30-0.70 | Ya, aku tahu.03 maksimal Ti.03 maksimal | |||||
